Ceiling Fan for Large Industrial Ventilation Customization and Mounting Options

Name: Ceiling Fan for Large Industrial Ventilation Customization and Mounting Options
Brand: Ceiling Fan for Large Industrial Ventilation Customization and Mounting Options
SKU: Ceiling Fan for Large Industrial Ventilation Customization and Mounting Options
Rating: 4.9 (147 reviews)

Product Details

Certification: ISO

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Customization Ceiling Fan, Mounting Options Ceiling Fan, Large Industrial Ventilation Ceiling Fan


Model NO.:	DS-. 73	Type:	Axial Fan
Electric Current Type:	AC	Mounting:	Ceiling Fan
Transport Package:	Wooden Package	Specification:	Diameter 7.3 Meter
Trademark:	DS	Origin:	China
HS Code:	841459100	Customization:	Available
Material:	Aluminum Fan	Blade Material:	Al-Mg Alloy

Model NO.:	DS-. 73
Type:	Axial Fan
Electric Current Type:	AC
Mounting:	Ceiling Fan
Transport Package:	Wooden Package
Specification:	Diameter 7.3 Meter
Trademark:	DS
Origin:	China
HS Code:	841459100
Customization:	Available
Material:	Aluminum Fan
Blade Material:	Al-Mg Alloy

Description

Ceiling Fan for Large Industrial Ventilation Customization and Mounting Options

Product description

The wind blown from large industrial ceiling fan feels like natural breeze system,the wind speed is just the best cool feeling of human skin. Personnel can feel the temperature difference 5-8 degree, provide personnel a suitable working environment in hot summer,therefore improve the production efficiency.
Function of the fan:
1)ventilation
The fan improve air exchange in an entire space, it's perfect streamlined design can produces 2-3m/s speed three-dimensional wind, and makes you feel like enjoying the natural breeze system.It promotes the dispersion of smoke, moisture, carbon dioxide and poor air with high specific gravity.So as to improve the quality of working area, create healthy, dry and safe working environment, improve working efficiency.
2)convenience
It is convenience to be operated, control system adopts the latest poleless frequency converter control system.besides of convenience operation, the humanized operation interface also allows you enjoy the beauty of electronic and mechanic achieve the life.

Dehumidification

Because it can produce large air volume, effectively promote air circulation, so that the moisture is well dispersed, greatly reducing the probability of problems such as bedbugs, fungi and so on.
4)beautiful and durable
After complex surface treatment,the product can avoid the pain of period cleaning,the cost-performance ratio is the highest,the life of each fan can reach more than10 years.

energy saving

The rated power of the motor on the fan is 1.5KW,each fan can cover 1000 square meter working area,8 hours per day, is just 10 degree power energy consumption,compared to typical small fans and high power consumption air condition, large industrial ceiling fan can be called model of energy saving, can greatly reduce your operation cost.
working principle :
Large ceiling fan is a series of products special developed for energy saving,working environment improvement. As we all know,refrigeration is not the only way to achieve the effect of cooling and comfort. The area of a fan could blow is determined by the diameter dimension of it, but has nothing to do with its speed.therefore, the industrial fan with large diameter and low speed combines all these characteristics .
After years deeply research and exploration,by integrating oversea advanced aeronautic technology,we Dai sen developed a kind of propeller blades with outstanding performance,it conforms continuous and silent breeze by slowly rotation.The large volume of airflow generated by its unique and high efficient blades push down,thus a nearly perfect propeller exhaust is constructed.
It pushes large volume of airflow to the ground,and constructed certain high level airflow moving horizontally,thus generates a overall air circulation.The advantage is overall ground coverage and three-dimensional circulation of air.
The speed of wind generated by"Large industrial ceiling fan"is about 1-3m/s,completely calculated according to the best feeling of cooling when the airflow pass through human skin.too strong airflow makes people feel irritable,a sense of being blown directly,too high speed of airflow also makes people dizzy,only the through the evaporation of skin combines of breeze speed,can beautifies people's feeling of cooling.

Large Industrial Ventilation Ceiling Fan

"DAISEN"industrial ceiling fan technical standard
General
Model Number ----------------------------------------------------------DS-7.3
Operation mode ---------------------------------------------------------Forward Run
Diameter ------------------------------------------------------------------24 FT / 7.3 Meters
Blade Style ------------------------------------------------------------- Airfoil/OP
Number of Blades   ------------------------------------------------------- 6
Nominal Horsepower ------------------------------------------------ 2.0 HP / 1.5 kW
Hanging Weight (average) -------------------------------------- 156Kg
Shipping Weight (Including control box, Mounting Hardware) (average)   186 Kg
Maximum dB-------------------------------------------------------------------60
(*dB Values Were Obtained by Testing. Specific Applications/Installation values may vary.

Performance (at max speed)
Displacement (fwd, blowing down) ---------- 16800 CMM( m3/min)
Maximum Speed----------------------------------------------------------- 50 RPM
Power Usage @ Max. Speed ----------------------- 1.5 kW
Efficiency @ 100% Max. Speed ------------------------------ 8.53CMM/Watt
Maximum Effective Area(varies according to different installation height, as well as below obstacles)----600-1400 m2
Typical Industrial Spacing --------------------------------------------12-40 Meter

Mounting Hardware
Standard Mount---------------------------------
Universal I-Beam Clamp w/ Swivel Joint and 250mm Drop
Glulam Mount (Optional) Brackets w/ Swivel Joint &200MM Drop

Additional Drop Extensions (Puyou)--------- Up to 2m in 20cm Increments
Motor
gear motor ------------------------------------------------------- CV40-30-1500
bearing structure ------------------------------------------------------- SKF heavy load bearing
design life ------------------------------------------------------- 12 years
HP ------------------------------------------------------- 2 / 1.5 kW
Ambient Operating Temperature-------------   -20 C° to +40C°
Insulation Class -------------------------------------- H
Protect Class------------------------------------------IP 55
Work Contition------------------------------------------- continuous S 1
Service Factor---------------------------------------- 0.8/0.78
Gearbox
Type -------------------------------------------------------- 2-Stage Helical
Service Interval-------------------------------------------synthetic gear lubricating grease,maintenance free
Motor Control Panel (MCP)
Standard Power and Max Amp Draw-------------------- --220V AC 2Ø (16A)   OR 380 AC 3Ø (20A)
power indication light-------------------------------------------------------fault/running(red/green)
RF Line Filter-------------------------------------RF
Air Breaker--------------------------------------- Schneider 220V1Ø 16A 380V3Ø16A
VFD Motor Drive Cable -----------------RVV1*
Frequency Converter-------------------------
poleless frequency controller,(1.5KW)|380V/220V
Safety Components
turnbuckle screw
mechanical anti-dropping structure
plastic coated steel cable
Blade Retainer Links (6), Safety Cable, Guy Wires (Ceiling mount only)
high strength screws and anti-skid nuts of 8.8,10.9, 12.9 grade for differnt structures.
Warranty
one year part warranty on Motor,blade, Gearbox & Control Panel.

Product model

	Model	Voltage	Power	Diameter	Max speed	Volume	Noise grade	Weight
Fengshen seires	DS-7.3	220V/380V	1.5KW	7.3M	50	16800m³/min	≤60	156kg
	DS-6.6	220V/380V	1.5KW	6.6M	55	12862m³/min	≤60	151kg
	DS-6.0	220V/380V	1.5KW	6.0M	60	12261m³/min	≤60	148g
	DS-5.4	220V/380V	1.5KW	5.4M	65	11963m³/min	≤60	144kg
Fengxing series	DS-4.8	220V	0.75KW	4.8M	75	10675m³/min	≤40	60kg
	DS-4.2	220V	0.52KW	4.2M	85	5213m³/min	≤40	56kg
	DS-3.6	220V	0.40KW	3.6M	95	3326m³/min	≤40	52kg
	DS-3.0	220V	0.35KW	3.0M	120	2673m³/min	≤40	48kg

Key component configuration

★drive device

•Fengshen series fan adopts Taiwan/German gearbox motor

•Fengxing series adopts the industry's first non carbon brush, large torque, DC drive motor, replacing the traditional motor speed reducer, realizing high integration, improving reliability and transmission efficiency
★control device

•Fengshen series fan adopts Taiwan / Germany brand inverter stepless speed change (optional explosion-proof controller) to configure circuit breaker overcurrent overload protection, cooling fan and other components

•Fengxing series fan adopts a special brush free controller
★fan blade

•The material of the fan blade adopts magnesium aluminum alloy T6 treatment, corrosion resistance, high strength, high toughness

•Advanced fluid simulation software CFD simulation and wind tunnel test, in line with aerodynamic anti fatigue;

•With the function of delay start, the load and impact of the motor are greatly reduced, and the service life is longer

★Structure components

•The structural parts are formed by Q235B laser, bending the stiffener structure, and the thickest part is 8mm.

•Alloy steel high strength bolts and anti-skid nuts are used for the bolts.

•Steel wire rope and turnbuckle tension structure to stabilize the fan against falling

• The integrated chassis can prevent the risk of fracture, the coupling anti falling structure can avoid screw defects, the chassis can be dropped, the hole arrangement design of plywood structure can prevent sliding, the adjustable structure is suitable for any installation conditions, and the arc-shaped adjustable waist hole can be adjusted to ensure the plane level of blade chassis

Comparison of three refrigeration methods in 1000 square meter plant

Refrigeration mode	Quantity	Power/unit	Tall power	General comparison
Central air conditioner	1	80KW	80KW	The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan	40	0.3KW	12KW	The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M large industrial ceiling fan	1	1.5KW	1.5KW	Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection

The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan

***Suitable places of installation: Any high enough structure of factory,sport center,logistic place,car repair workshops,supermarket, airport,package workshop,animal breading industry,any kinds of hall,as well as fitness center etc.
***Height of installation: "Fengshen" series products for 6 meters to 20 meters height.
"Fengxing" series products for 3 meters to 6 meters height.
***Solutions for the three main kinds of installation structures as above shown pictures.

There are various forms of building structures. We provide you with the installation methods of three common structures (right figure):

Air flow of the fan

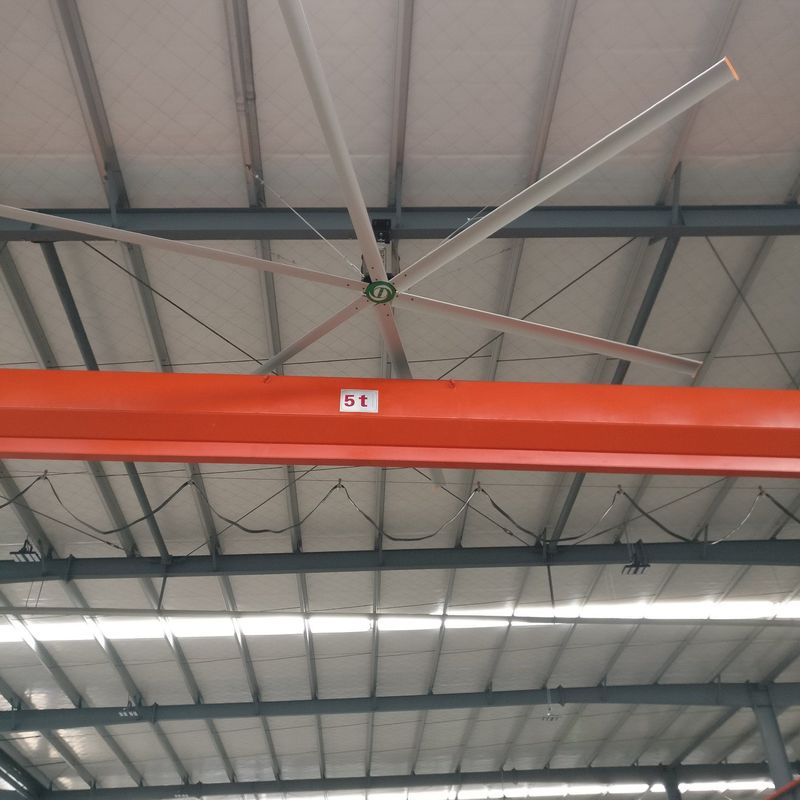

Typical customer applications
